壓控石英振盪器
安碁科技壓控石英振盪器具備精準的電壓頻率控制能力，是鎖相環（PLL）與時脈同步系統的核心元件。透過外接控制電壓，本產品能提供靈活的輸出頻率微調，具備高控制線性度、低相位抖動與極佳的長期頻率穩定性，可有效補償系統累積誤差與環境變異造成的頻率偏移。
CRYSTAL OSCILLATORS
VXON
ACTUAL SIZE:
VXON-531 SERIES
CERAMIC PACKAGE
APPLICATIONS
IPC
STB
Router
FEATURES
Voltage Controlled Crystal Oscillator
Frequency Adjustable
Low Power Consumption
RoHS Compliant
Specification
| MODEL | |||
|---|---|---|---|
| FREQUENCY RANGE | MHz | 1.000 ~ 52.000 | |
| FREQUENCY STABILITY* | ppm | ± 25 ~ ± 100 (VCON at 50% VDC) | |
| FREQUENCY CONTROL RANGE | ppm | ± 50 ~ ± 150 Min. | |
| CONTROL VOLTAGE RANGE | V | 10% VDC ~ 90% VDC | |
| OPERATING TEMPERATURE | °C | - 20 ~ + 70 Or - 40 ~ + 85 | |
| STORAGE TEMPERATURE | °C | - 55 ~ + 125 | |
| POWER SUPPLY VOLTAGE | VDC | +2.5 ± 5% | +3.3 ± 10% |
| OUTPUT SYMMETRY | % | 45 ~ 55 (at 50% VDC) | |
| INPUT CURRENT | mA (Max.) | 30 | |
| OUTPUT LOAD | 15 pF Max. | ||
| RISE / FALL TIME | ns (Max.) | 5 | |
| AGING | ppm/Year | ± 3 | |
*Inclusive of 25°C±3°C & Operating Temperature Range.
**Specification subject to change without notice.
**Specification subject to change without notice.
Pin Connection
| PIN No. | Connection |
|---|---|
| #1 | VCON |
| #2 | Enable/Disable |
| #3 | GND |
| #4 | Output |
| #5 | N.C. |
| #6 | VDC |
Enable/Disable Function
| Pin #1 | Pin #4 |
|---|---|
| HIGH(OPEN) | Output |
| LOW | High Impedance |

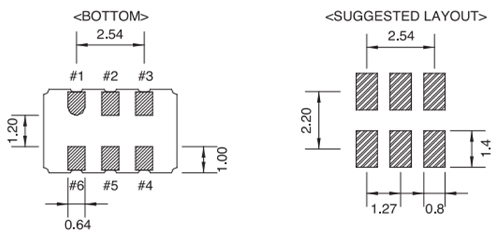

Dimension(mm)
VXON-531 SERIES
