压控晶振

CRYSTAL OSCILLATORS

VXON

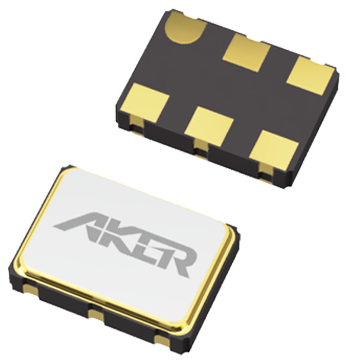

ACTUAL SIZE:

VXON-751 SERIES

CERAMIC PACKAGE

CRYSTAL OSCILLATORS

APPLICATIONS

IPC

STB

Router

FEATURES

Voltage Controlled Crystal Oscillator

Frequency Adjustable

Low Power Consumption

Heavy Loading Capability

RoHS Compliant

Specification

MODEL
FREQUENCY RANGE	MHz	1.000 ~ 52.000
FREQUENCY STABILITY*	ppm	± 25 ~ ± 100 (VCON at 50% VDC)
FREQUENCY CONTROL RANGE	ppm	± 50 ~ ± 150 Min.
CONTROL VOLTAGE RANGE	V	10% VDC ~ 90% VDC
OPERATING TEMPERATURE	°C	- 20 ~ + 70 Or - 40 ~ + 85
STORAGE TEMPERATURE	°C	- 55 ~ + 125
POWER SUPPLY VOLTAGE	VDC	+2.5 ± 5%	+3.3 ± 10%
OUTPUT SYMMETRY	%	45 ~ 55 (at 50% VDC)
INPUT CURRENT	mA (Max.)	30
OUTPUT LOAD		15 pF Max.
RISE / FALL TIME	ns (Max.)	5
AGING	ppm/Year	± 3

*Inclusive of 25°C±3°C & Operating Temperature Range.
**Specification subject to change without notice.

Pin Connection

PIN No.	Connection
#1	VCON
#2	Enable/Disable
#3	GND
#4	Output
#5	N.C.
#6	VDC

Enable/Disable Function

Pin #1	Pin #4
HIGH(OPEN)	Output
LOW	High Impedance

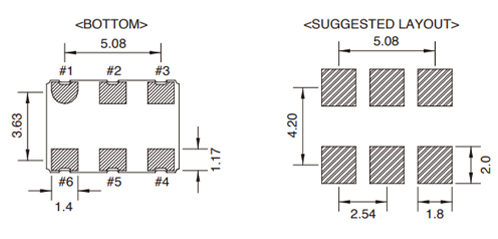

Dimension(mm)

VXON-751 SERIES
