温补晶振
CRYSTAL OSCILLATORS
TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR
ACTUAL SIZE:

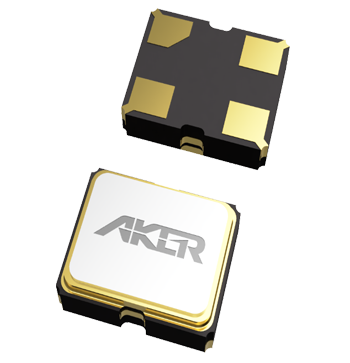

TXON-221Z SERIES
CERAMIC PACKAGE
APPLICATIONS
Cell Phone
Communication
Test Equipment
Wearnbhe Devices
IoT Devices
FEATURES
Seam Seal
Low power consumption
RoHS Compliant
Specification
| MODEL | ||
|---|---|---|
| FREQUENCY RANGE | MHz | 13.000 ~ 52.000 |
| FREQUENCY TOLERANCE | ppm | ± 2.0 Max. |
| OPERATING TEMPERATURE | °C | - 30 ~ + 85 Or - 40 ~ + 85 |
| STORAGE TEMPERATURE | °C | - 55 ~ + 125 |
| POWER SUPPLY VOLTAGE | VDC | +1.2 ± 5% |
| FREQUENCY STABILITY | ||
| VS. OPERATING TEMPERATURE* | ppm | ± 0.5 ~ ± 2.0 |
| VS. POWER SUPPLY VOLTAGE | ppm (Max.) | ± 0.2 |
| VS. OUTPUT LOAD | ppm (Max.) | ± 0.2 |
| OUTPUT WAVEFORM | CLIPPED SINEWAVE | |
| OUTPUT LOAD | 10KΩ//10pF | |
| OUTPUT LEVEL | Vp-p (Min.) | 0.8 |
| INPUT CURRENT | ||
| 10.000 ~ 52.000MHz | mA (Max.) | 2.5 |
| PHASE NOISE | ||
| @100Hz offset | -115 | |
| @1KHz offset | dBc/Hz (Typ.) | -133 |
| @10KHz offset | -146 | |
| START UP TIME | ms (Max.) | 2.0 |
| Enable-Disable Function | Yes | |
| AGING | ppm/Year | ± 1 |
*Refer to the middle point between the minimum and maximum frequency values.
**Specification subject to change without notice.
**Specification subject to change without notice.
Pin Connection
| PIN No. | Connection |
|---|---|
| #1 | Enable/Disable |
| #2 | GND |
| #3 | Output |
| #4 | VDC |
Enable/Disable Function
| Pin #1 | Pin #3 |
|---|---|
| HIGH | Frequency Output |
| LOW | Frequency Halt |

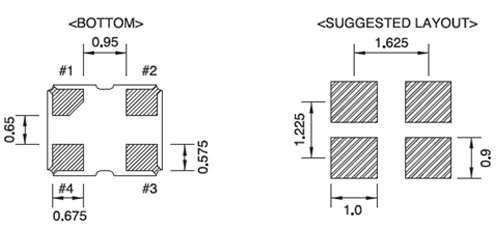

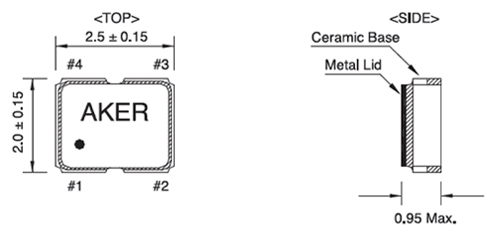

Dimension(mm)
TXON-221Z SERIES
