展频晶振
CRYSTAL OSCILLATORS
LOW EMI
ACTUAL SIZE:

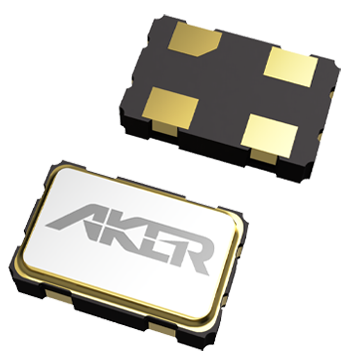

SMGN-531 SERIES
CERAMIC PACKAGE
APPLICATIONS
Notebook PC
Portable PC
LCD
Digital Camera
Wireless LAN
Mobile Phone
FEATURES
Spread Spectrum Low EMI Oscillators
Low Power Consumption
RoHS Compliant
Specification
| MODEL | |||
|---|---|---|---|
| FREQUENCY RANGE | MHz | 1.000 ~ 166.000 | 1.000 ~ 200.000 |
| FREQUENCY STABILITY* | ppm | ± 25 ~ ± 100 | |
| OPERATING TEMPERATURE | °C | - 20 ~ + 70 Or Specify ( - 40 ~ + 85 is available) | |
| STORAGE TEMPERATURE | °C | - 55 ~ + 125 | |
| POWER SUPPLY VOLTAGE | VDC | +2.5 ± 5% | +3.3 ± 5% |
| OUTPUT LEVEL | CMOS | ||
| OUTPUT SYMMETRY | % | 45 ~ 55 (at 50% VDC) | |
| INPUT CURRENT | |||
| 1.000 ~ 49.999MHz | mA (Max.) | 20 | 20 |
| 50.000 ~ 99.999MHz | mA (Max.) | 30 | 30 |
| 100.000 ~ 149.999MHz | mA (Max.) | 30 | 35 |
| 150.000 ~ 200.000MHz | mA (Max.) | 35 | 40 |
| RISE / FALL TIME ( 10% to 90% ~ 90% to 10% VDC) | |||
| 1.000 ~ 49.999MHz | ns (Max.) | 10.0 | |
| 50.000 ~ 99.999MHz | ns (Max.) | 5.0 | |
| 100.000 ~ 149.999MHz | ns (Max.) | 4.0 | |
| 150.000 ~ 200.000MHz | ns (Max.) | 3.0 | |
| OUTPUT LOAD | pF | 15 | |
| MODULATION FREQUENCY | KHz | 30 ~ 40 | |
| CYCLE TO CYCLE JITTER (1-σ) | ps | ± 250 | |
| AGING | ppm/Year | ± 3 | |
*Inclusive of 25°C±3°C & Operating Temperature Range.
**Specification subject to change without notice.
**Specification subject to change without notice.
Spread Spectrum Modulation
| Center Spread | Down Spread |
|---|---|
| ±0.125% ~ ±2.0% | -0.25% ~ -4.0% |
Pin Connection
| PIN No. | Connection |
|---|---|
| #1 | Enable/Disable |
| #2 | GND |
| #3 | Output |
| #4 | VDC |
Enable/Disable Function
| Pin #1 | Pin #3 |
|---|---|
| HIGH(OPEN) | Output |
| LOW | High Impedance |

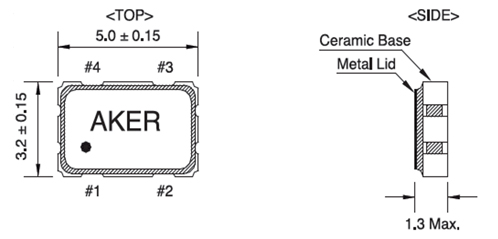

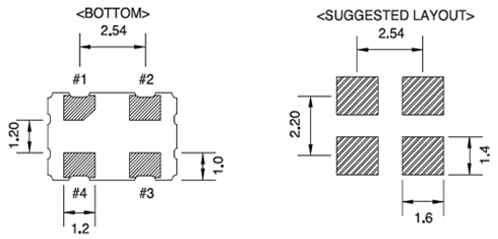

Dimension(mm)
SMGN-531 SERIES
