CRYSTAL OSCILLATORS
Automotive Grade
ACTUAL SIZE:

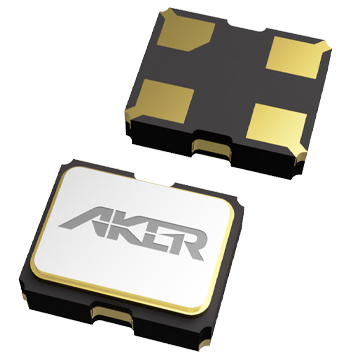

SMAF-211 SERIES
CERAMIC PACKAGE
APPLICATIONS
Camera
TPMS
Bluetooth
FEATURES
Seam Seal
Excellent Solderability
Tri-State
Low Power Consumption
RoHS Compliant
IATF-16949 Certified
AEC-Q200 Qualified
Specification
| MODEL | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| FREQUENCY RANGE | MHz | 10.000~40.000 | 10.000~50.000 | 10.000~50.000 | 2.000~60.000 | 2.000~60.000 | 2.000~60.000 | 2.000~60.000 | |
| FREQUENCY STABILITY* | ppm | ± 25 ~ ± 100 | |||||||
| OPERATING TEMPERATURE | °C | - 40 ~ + 85 Or - 40 ~ + 125 | |||||||
| STORAGE TEMPERATURE | °C | - 55 ~ + 125 | |||||||
| POWER SUPPLY VOLTAGE | VDC | +0.9 ± 5% | +1.2 ± 5% | +1.5 ± 5% | +1.8 ± 10% | +2.5 ± 10% | +3.3 ± 10% | +1.62 ~ +3.63 | |
| OUTPUT LEVEL | CMOS | ||||||||
| OUTPUT SYMMETRY | % | 45 ~ 55 (at 50% VDC) | |||||||
| INPUT CURRENT | |||||||||
| 2.0 ~ 9.9MHz | mA (Max.) |
- | - | - | 3 | 4 | 5 | 5 | |
| 10.0 ~ 19.9MHz | 1.5 | 2.5 | 3.5 | 4 | 5 | 6 | 6 | ||
| 20.0 ~ 31.9MHz | 1.5 | 2.5 | 3.5 | 5 | 6 | 7 | 7 | ||
| 32.0 ~ 60.0MHz | 2 | 3.5 | 4.5 | 6 | 7 | 8 | 8 | ||
| RISE/FALL TIME | |||||||||
| 2.0 ~ 9.9MHz | ns (Max.) |
- | - | - | 6 | 5 | 5 | 6 | |
| 10.0 ~ 19.9MHz | 15 | 12 | 10 | 6 | 5 | 5 | 6 | ||
| 20.0 ~ 31.9MHz | 15 | 12 | 10 | 5 | 5 | 5 | 5 | ||
| 32.0 ~ 60.0MHz | 15 | 12 | 10 | 5 | 5 | 5 | 5 | ||
| OUTPUT LOAD | 15 pF Max. | ||||||||
| AGING | ppm/Year | ± 3 | |||||||
*Inclusive of 25°C±3°C & Operating Temperature Range.
**Specification subject to change without notice.
**Specification subject to change without notice.
Pin Connection
| PIN No. | Connection |
|---|---|
| #1 | Enable/Disable |
| #2 | GND |
| #3 | Output |
| #4 | VDC |
Enable/Disable Function
| Pin #1 | Pin #3 |
|---|---|
| HIGH(OPEN) | Output |
| LOW | High Impedance |

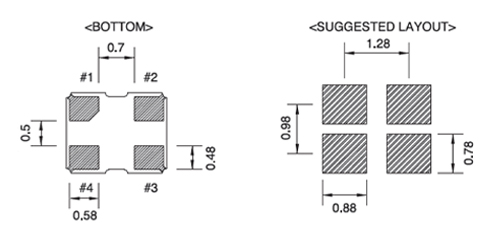

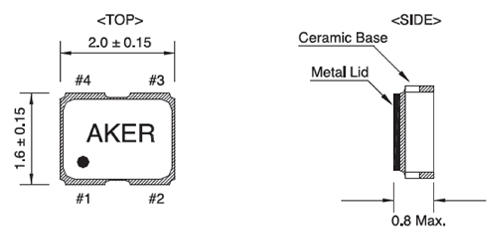

Dimension(mm)
SMAF-211 SERIES
