车用
产品特色
安全工作温度
稳定性高
IATF-16949
AEC-Q200
测试标准
RoHs认证
CRYSTAL UNITS
Automotive Grade
ACTUAL SIZE:
CXAF-531 SERIES
CERAMIC PACKAGE
APPLICATIONS
Camera
Media
TPMS
FEATURES
Seam Seal
Excellent Solderability
Excellent Vibration Resistance
& Shock Resistance
& Shock Resistance
High Frequency Stability
Excellent Thermal Hysteresis
RoHS Compliant
IATF-16949 Certified
AEC-Q200 Qualified
Specification
| MODEL | ||||
|---|---|---|---|---|
| DIMENSION | ( mm ) | 5.00 X 3.20 | ||
| FREQUENCY | ||||
| FREQUENCY RANGE ( Fundamental ) | MHz | 8.000 ~ 54.000 | ||
| FREQUENCY RANGE ( 3rd Overtone ) | MHz | 48.000 ~ 156.250 | ||
| FREQUENCY TOLERANCE ( 25°C ) | ppm | ± 10 ~ ± 100 | ||
| FREQUENCY STABILITY ( Ref to 25°C ) | ppm | ± 20 ~ ± 100 | ± 50 ~ ± 100 | |
| ENVIRONMENTAL CONDITION | ||||
| OPERATING TEMPERATURE RANGE | °C | - 40 ~ + 85 Or - 40 ~ + 125 | - 55 ~ + 125 | |
| STORAGE TEMPERATURE RANGE | °C | - 55 ~ + 150 | ||
| AGING / YEAR | ppm | ± 3 | ||
| ELECTRICAL SPECIFICATIONS | ||||
| TEST CIRCUIT | S&A 250B With π Fixture | |||
| LOAD CAPACITANCE | pF | SERIES, 6pF to 47pF, or Specify | ||
| DRIVE LEVEL | uW | 15, 30, 50, 100, 200 or special requirement | ||
| EQUIVALENT SERIES RESISTANCE | Ω | See Table | ||
| SHUNT CAPACITANCE | pF | 7.0 Max. | ||
*Specification subject to change without notice.
Equivalent Series Resistance ( Ω )
| Frequency Range | Mode of Operation | ESR |
|---|---|---|
| 8.000 ~ 9.999 | Fundamental | 60Ω Max. |
| 10.000 ~ 11.999 | Fundamental | 45Ω Max. |
| 12.000 ~ 15.999 | Fundamental | 35Ω Max. |
| 16.000 ~ 19.999 | Fundamental | 30Ω Max. |
| 20.000 ~ 49.999 | Fundamental | 25Ω Max. |
| 50.000 ~ 54.000 | Fundamental | 20Ω Max. |
| 48.000 ~ 59.999 | 3rd Overtone | 70Ω Max. |
| 60.000 ~ 156.250 | 3rd Overtone | 60Ω Max. |

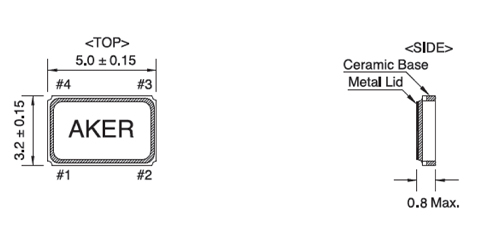

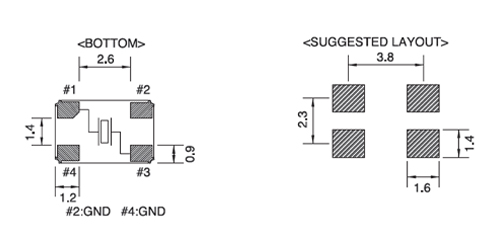

Dimension(mm)
CXAF-531 SERIES
