CRYSTAL OSCILLATORS

ACTUAL SIZE:

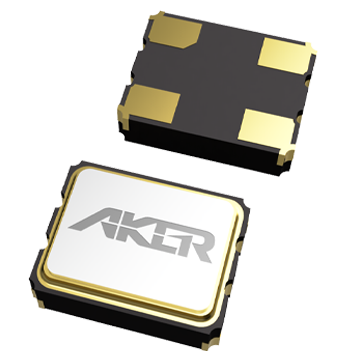

SMAN-321 SERIES

CERAMIC PACKAGE

CRYSTAL OSCILLATORS

APPLICATIONS

DVR

Camera

Medical

Industry Control

Wireless

Communcation

Telecom

IoT

FEATURES

Seam Seal

Excellent Solderability

Tri-State

Low Power Consumption

RoHS Compliant

Specification

MODEL
FREQUENCY RANGE	MHz	10.000~40.000	10.000~50.000	10.000~50.000	1.000~110.000	1.000~160.000	1.000~160.000	1.000~110.000	1.000~60.000
FREQUENCY STABILITY*	ppm	± 20 ~ ± 100
OPERATING TEMPERATURE	°C	- 20 ~ + 70 Or Specify ( - 40 ~ + 125 is available)
STORAGE TEMPERATURE	°C	- 55 ~ + 125
POWER SUPPLY VOLTAGE	VDC	+0.9 ± 5%	+1.2 ± 5%	+1.5 ± 5%	+1.8 ± 10%	+2.5 ± 10%	+3.3 ± 10%	+1.62~+3.63	+5.0 ± 10%
OUTPUT LEVEL		CMOS
OUTPUT SYMMETRY	%	45 ~ 55 (at 50% VDC)
INPUT CURRENT
1.0 ~ 9.9MHz	mA (Max.)	-	-	-	3	5	5	5	10
10.0 ~ 19.9MHz		1.5	2.5	3.5	5	5	5	5	12
20.0 ~ 31.9MHz		1.5	2.5	3.5	5	6	7	7	15
32.0 ~ 60.0MHz		2	3.5	4.5	10	12	12	12	22
60.1 ~ 110.0MHz		-	-	-	10	20	25	25	-
110.1 ~ 160.0MHz		-	-	-	-	20	30	-	-
RISE/FALL TIME
1.0 ~ 9.9MHz	ns (Max.)	-	-	-	7	7	6	7	6
10.0 ~ 19.9MHz		15	12	10	7	7	6	7	6
20.0 ~ 31.9MHz		15	12	10	6	6	5	6	5
32.0 ~ 60.0MHz		15	12	10	6	6	5	6	5
60.1 ~ 110.0MHz		-	-	-	6	6	5	6	-
110.1 ~ 160.0MHz		-	-	-	-	6	6	-	-
OUTPUT LOAD		15 pF Max.
AGING	ppm/Year	± 3

*Inclusive of 25°C±3°C & Operating Temperature Range.
**Specification subject to change without notice.

Pin Connection

PIN No.	Connection
#1	Enable/Disable
#2	GND
#3	Output
#4	VDC

Enable/Disable Function

Pin #1	Pin #3
HIGH(OPEN)	Output
LOW	High Impedance

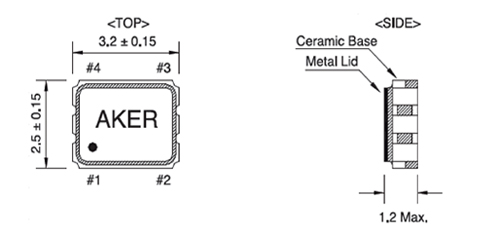

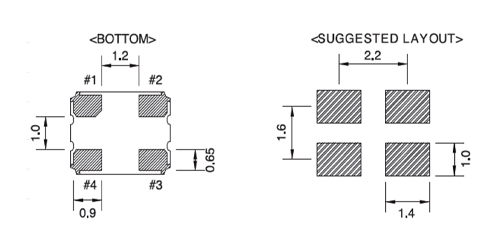

Dimension(mm)

SMAN-321 SERIES
