CRYSTAL UNITS
ACTUAL SIZE:
CXAN-631 SERIES
CERAMIC PACKAGE
APPLICATIONS
Security
Home Appliance
Meter
FEATURES
Seam Seal
Excellent Solderability
Excellent Vibration Resistance
& Shock Resistance
& Shock Resistance
High Frequency Stability
Excellent Thermal Hysteresis
RoHS Compliant
Specification
| MODEL | |||
|---|---|---|---|
| DIMENSION | ( mm ) | 6.00 X 3.50 | |
| FREQUENCY | |||
| FREQUENCY RANGE ( Fundamental ) | MHz | 7.3728 ~ 50.000 | |
| FREQUENCY RANGE ( 3rd Overtone ) | MHz | 40.000 ~ 133.000 | |
| FREQUENCY TOLERANCE ( 25°C ) | ppm | ± 10 ~ ± 50 | |
| FREQUENCY STABILITY ( Ref to 25°C ) | ppm | ± 10 ~ ± 100 | ± 50 ~ ± 100 |
| ENVIRONMENTAL CONDITION | |||
| OPERATING TEMPERATURE RANGE | °C | - 20 ~ + 70 Or Specify ( - 40 ~ + 125 is available) | - 55 ~ + 125 |
| STORAGE TEMPERATURE RANGE | °C | - 55 ~ + 125 | |
| AGING / YEAR | ppm | ± 3 | |
| ELECTRICAL SPECIFICATIONS | |||
| TEST CIRCUIT | S&A 250B With π Fixture | ||
| LOAD CAPACITANCE | pF | SERIES, 6pF to 47pF, or Specify | |
| DRIVE LEVEL | uW | 15, 30, 50, 100, 200 or special requirement | |
| EQUIVALENT SERIES RESISTANCE | Ω | See Table | |
| SHUNT CAPACITANCE | pF | 7.0 Max. | |
*Specification subject to change without notice.
Equivalent Series Resistance ( Ω )
| Frequency Range | Mode of Operation | ESR |
|---|---|---|
| 7.3728 ~ 7.999 | Fundamental | 80Ω Max. |
| 8.000 ~ 8.999 | Fundamental | 60Ω Max. |
| 9.000 ~ 9.999 | Fundamental | 50Ω Max. |
| 10.000 ~ 11.999 | Fundamental | 45Ω Max. |
| 12.000 ~ 19.999 | Fundamental | 30Ω Max. |
| 20.000 ~ 24.999 | Fundamental | 25Ω Max. |
| 25.000 ~ 50.000 | Fundamental | 20Ω Max. |
| 40.000 ~ 51.999 | 3rd Overtone | 90Ω Max. |
| 52.000 ~ 79.999 | 3rd Overtone | 80Ω Max. |
| 80.000 ~ 133.000 | 3rd Overtone | 70Ω Max. |

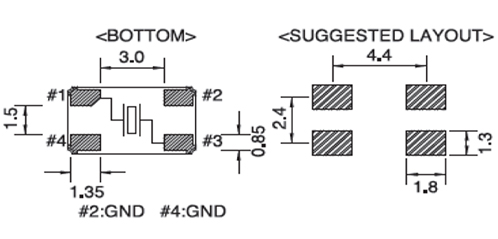

Dimension(mm)
CXAN-631 SERIES
