CMOS OSC
CRYSTAL OSCILLATORS
ACTUAL SIZE:
SMAN-161 SERIES
CERAMIC PACKAGE
APPLICATIONS
DVR
Camera
Medical
Industry Control
Wireless
Communcation
Telecom
IoT
FEATURES
Seam Seal
Excellent Solderability
Tri-State
Low Power Consumption
RoHS Compliant
Specification
| MODEL | |||||
|---|---|---|---|---|---|
| FREQUENCY RANGE | MHz | 8.000 ~ 50.000 | |||
| FREQUENCY STABILITY* | ppm | ± 25 ~ ± 100 | |||
| OPERATING TEMPERATURE | °C | - 20 ~ + 70 Or Specify ( - 40 ~ + 125 is available) | |||
| STORAGE TEMPERATURE | °C | - 55 ~ + 125 | |||
| POWER SUPPLY VOLTAGE | VDC | +1.8 ± 5% | +2.5 ± 5% | +3.3 ± 10% | +1.62 ~ +3.63 |
| OUTPUT LEVEL | CMOS | ||||
| OUTPUT SYMMETRY** | % | 45 ~ 55 (at 50% VDC) | |||
| INPUT CURRENT | |||||
| 8.0 ~ 9.9MHz | mA (Max.) |
3 | 4 | 5 | 5 |
| 10.0 ~ 19.9MHz | 4 | 5 | 6 | 6 | |
| 20.0 ~ 31.9MHz | 5 | 6 | 7 | 7 | |
| 32.0 ~ 50.0MHz | 6 | 7 | 8 | 8 | |
| RISE/FALL TIME | |||||
| 8.0 ~ 9.9MHz | ns (Max.) |
6 | 5 | 5 | 6 |
| 10.0 ~ 19.9MHz | 6 | 5 | 5 | 6 | |
| 20.0 ~ 31.9MHz | 5 | 5 | 5 | 5 | |
| 32.0 ~ 50.0MHz | 5 | 5 | 5 | 5 | |
| OUTPUT LOAD | 15 pF Max. | ||||
| AGING | ppm/Year | ± 3 | |||
*Inclusive of 25°C±3°C & Operating Temperature Range.
**Symmetry of 45~55% is available.
***Specification subject to change without notice.
**Symmetry of 45~55% is available.
***Specification subject to change without notice.
Pin Connection
| PIN No. | Connection |
|---|---|
| #1 | Enable/Disable |
| #2 | GND |
| #3 | Output |
| #4 | VDC |
Enable/Disable Function
| Pin #1 | Pin #3 |
|---|---|
| HIGH(OPEN) | Output |
| LOW | High Impedance |

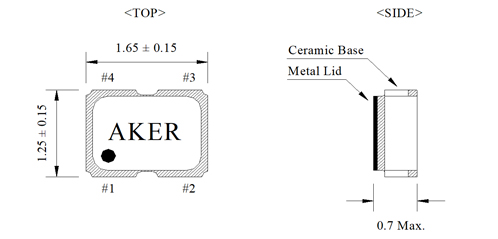

Dimension(mm)
SMAN-161 SERIES
