Programming OSC

CRYSTAL OSCILLATORS

PROGRAMMABLE

ACTUAL SIZE:

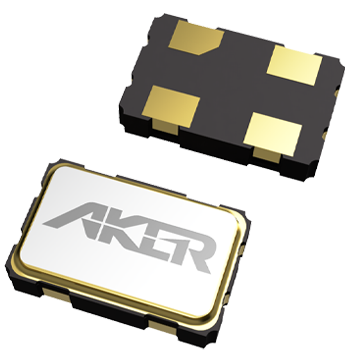

SMPN-531 SERIES

CERAMIC PACKAGE

CRYSTAL OSCILLATORS

APPLICATIONS

Industry Control

IPC

Home Appliance

Server

FEATURES

Seam Seal

Excellent Solderability

Tri-State

Low Power Consumption

RoHS Compliant

Specification

MODEL
FREQUENCY RANGE	MHz	1.000 ~ 110.000	1.000 ~ 166.000	1.000 ~ 200.000
FREQUENCY STABILITY*	ppm	± 25 ~ ± 100
OPERATING TEMPERATURE	°C	- 20 ~ + 70 , - 40 ~ + 85
STORAGE TEMPERATURE	°C	- 55 ~ + 125
POWER SUPPLY VOLTAGE	VDC	+1.8 ± 5%	+2.5 ± 5%	+3.3 ± 10%
OUTPUT LEVEL		CMOS
OUTPUT SYMMETRY	%	45 ~ 55 (at 50% VDC)
INPUT CURRENT
1.000 ~ 9.999MHz	mA (Max.)	8
10.000 ~ 19.999MHz		10
20.000 ~ 31.999MHz		12
32.000 ~ 49.999MHz		15
50.000 ~ 79.999MHz		20
80.000 ~ 99.999MHz		25
100.000 ~ 200.000MHz		30
RISE / FALL TIME
1.000 ~ 31.999MHz	ns (Max.)	6
32.000 ~ 200.000MHz	ns (Max.)	5
OUTPUT LOAD		15 pF Max.
AGING	ppm/Year	± 3

*Inclusive of 25°C±3°C & Operating Temperature Range.
**Specification subject to change without notice.

Pin Connection

PIN No.	Connection
#1	Enable/Disable
#2	GND
#3	Output
#4	VDC

Enable/Disable Function

Pin #1	Pin #3
HIGH(OPEN)	Output
LOW	High Impedance

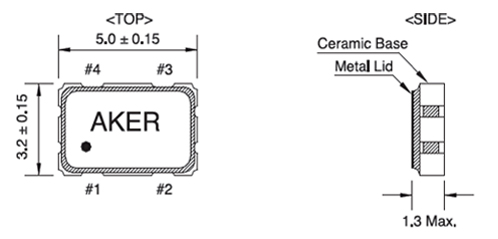

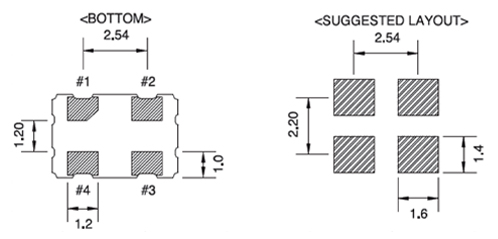

Dimension(mm)

SMPN-531 SERIES

Programming Crystal Oscillator SMPN-531 Series Specification

Programming Crystal Oscillator SMPN-531 Series Specification
