Temperature Compensated Crystal Oscillators from Aker Technology Feature Lower Power Design
Temperature Compensated Crystal Oscillators from Aker Technology Feature Lower Power Design
Available in a compact, rugged package, the TXON-211 and TXON-221 feature high frequency precision with multiple voltage options
Technology Highlights:
- Low power design
- Wide operating temperature range from -40°C to +105°C
- High frequency precision of ±2.0ppm
- Multiple voltage options: 1.8V, 2.5V, 3.3V, 1.68~3.63V
Aker Technology, a global manufacturer of innovative, competitively priced frequency control products, now offers two temperature compensated crystal oscillators (TCXO) with a frequency range of 10 to 52 MHz and a frequency stability up to ±2ppm. The TCXOs are ideal for use in the industrial, automotive, medical, consumer electronics and communication/network markets.
Both the TXON-211 and TXON-221 feature a low power design with a 3.0 mA max input current. Each offers multiple voltage options, including 1.8V, 2.5V, 3.3V and 1.68~3.63V. They have a standard operating temperature range of -30°C to 85°C, with an extended temperature range of -40°C to 105°C.

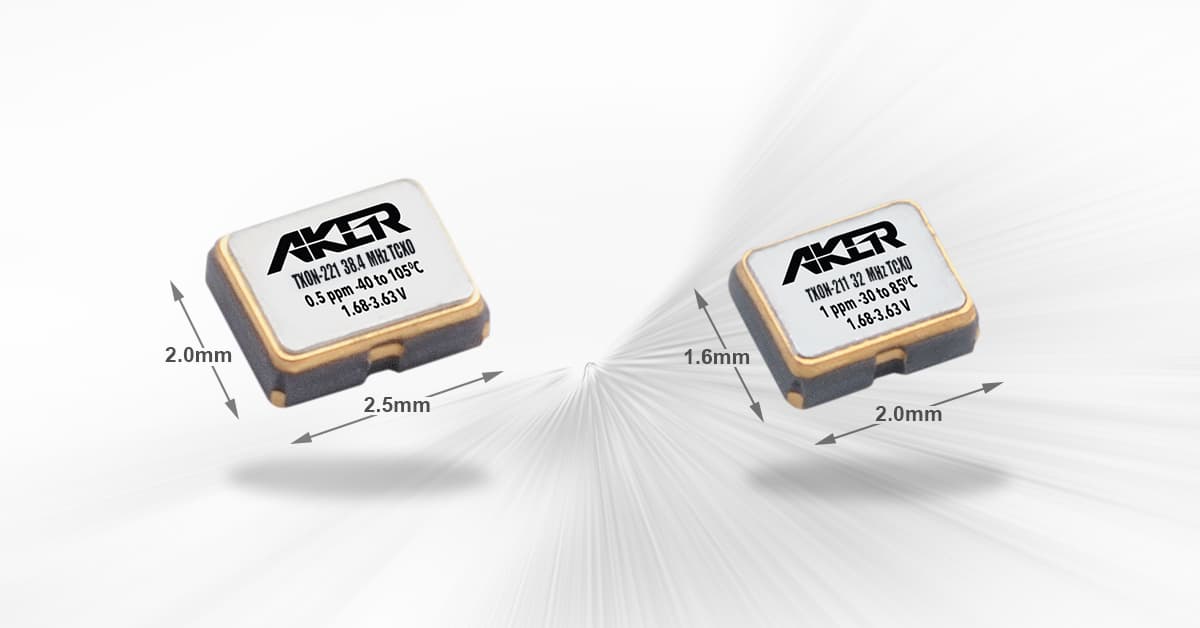

The TCXO’s compact rugged ceramic metal package helps reduce electro-magnetic interference (EMI) effects. The TXON-211 measures just 2. 0x 1.6 x 0.8 mm, while the TXON-221 measures 2.5 x 2.0 x 0.95 mm.
“Our TCXOs are extremely versatile. Both the TXON-211 and TXON-221 can be used in security surveillance systems, ADAS navigation systems, wearable medical devices, smartphones and tablets, as well as in broadband data communication equipment and satellite communication networks.
Built on Aker’s principles of flexible, high-quality manufacturing, the TXON-211 and TXON-221 can cost-effectively be delivered in small quantities with short turnaround and lead times.
