How to calculate CL and external capacitance?
A.
The calculation formula is as follows:

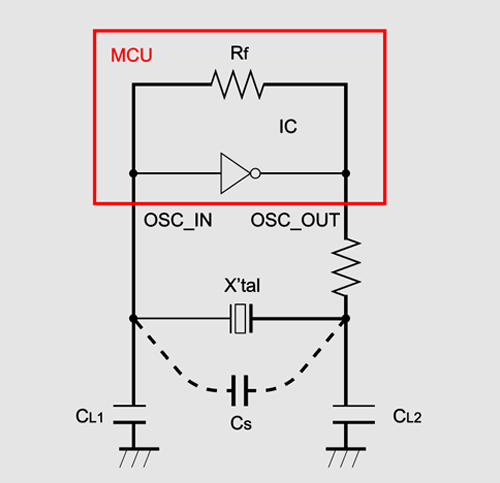

CL=(CL1XCL2)/ (CL1+CL2)+Cs
Where:
CL1and CL2are the external capacitors in the oscillator circuit.
Csis the stray capacitance in the circuit, generally about 2-5 pF.
Stray capacitance refers to the capacitance that includes:
The capacitance within the IC itself.
The capacitance between the layout traces.
The capacitance between different layers of the PCB, and so on.
